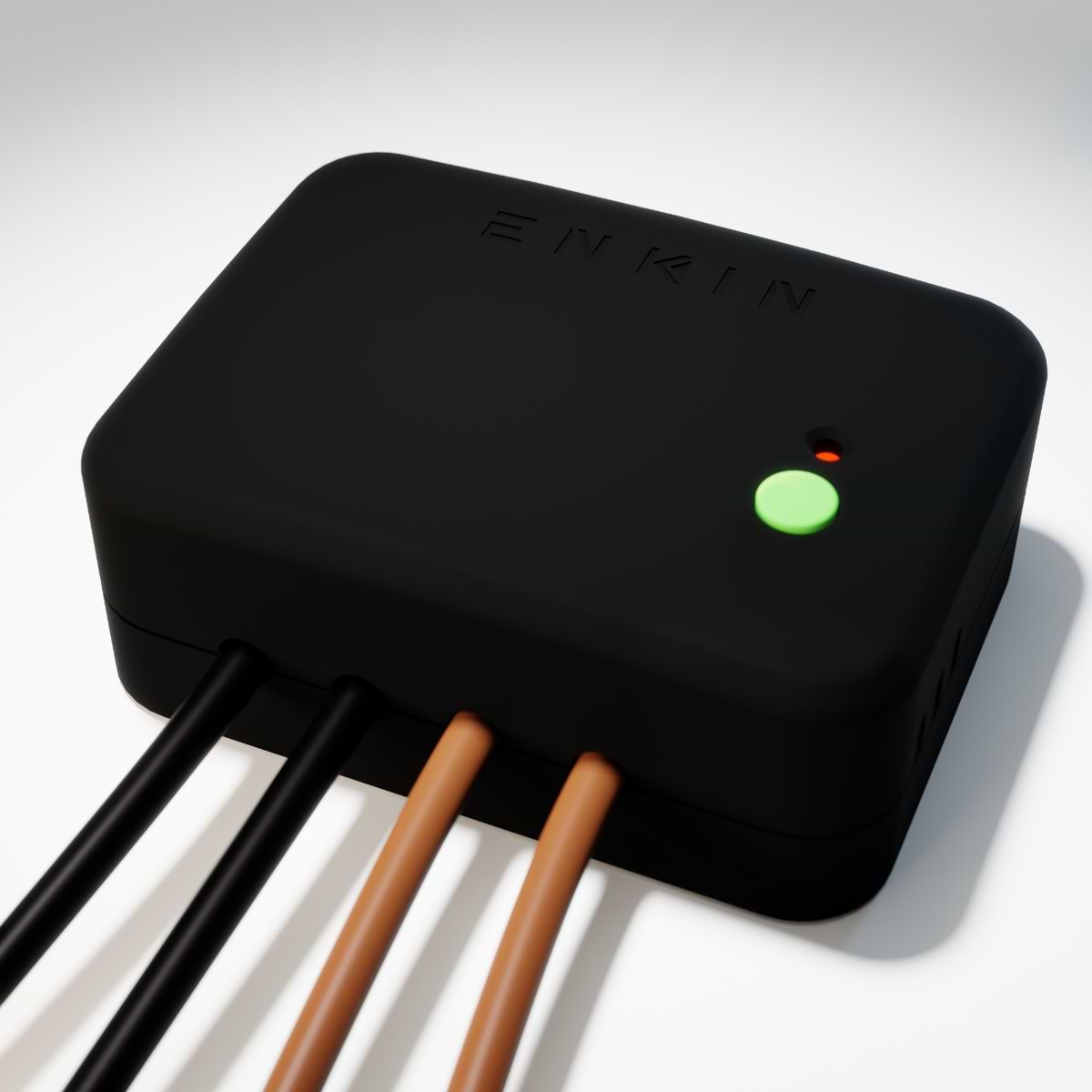

Enkin ZDM200 Zigbee Smart Dimmer Module

This award-winning dimmer module combined with Zigbee technology is designed to allow you to control your lighting from any location using your smartphone. Now with 200W of dimming capacity, the ZDM200 gives you the headroom to dim more of your lights from a single module. Supported by iOS and Android, it allows you to dim, turn your lights on and off, and even pre-set ambient moods for different times of the day.

The ZDM200 also features a wiring option for both retractive and two-way retractive switches. With this unique feature you can still control your lights via touch, as well as with your device. For even more flexibility, the ZDM200 can be paired directly to a Zigbee remote via Touchlink with no hub required, or linked to up to 30 remotes through your Zigbee network.

Some driverless products, such as LED strip lighting, can still operate with a small amount of residual current. If your lights are not dimming completely to off, you can try our Bypass Module.

• Operating Voltage: 220-240V ~ 50Hz
• Minimum Load: 2W LED (2W Incandescent / Halogen)
• Maximum Load: 200W LED (200W Incandescent / Halogen)
• Trailing/Leading Edge (up to 50W in Leading Edge mode)
• No Neutral required
• Easy push button setup
• Soft start feature
• Silent & flicker free
• Self-Recovering Thermal Fuse
• Short Circuit & Overload Protection
• Adjustable Min/Max brightness
• Manual dimming possible via a connected Retractive Switch(s)
• Touchlink pairing with Zigbee remotes, no hub required for a single remote
• Supports iOS or Android for wireless control and automation (gateway required)
• Compatible with most leading Zigbee Gateways
• 5-year warranty
